外徑千分尺
分辨率：0.001mm/0.00005"
測力：5~10N
電源：3V CR2032
電池功耗 ：≤40μA
工作溫度：0~40℃
儲存溫度：-20~60℃
防護等級：IP54（可以在濺水的環境下使用）
方便單手使用。
通電后

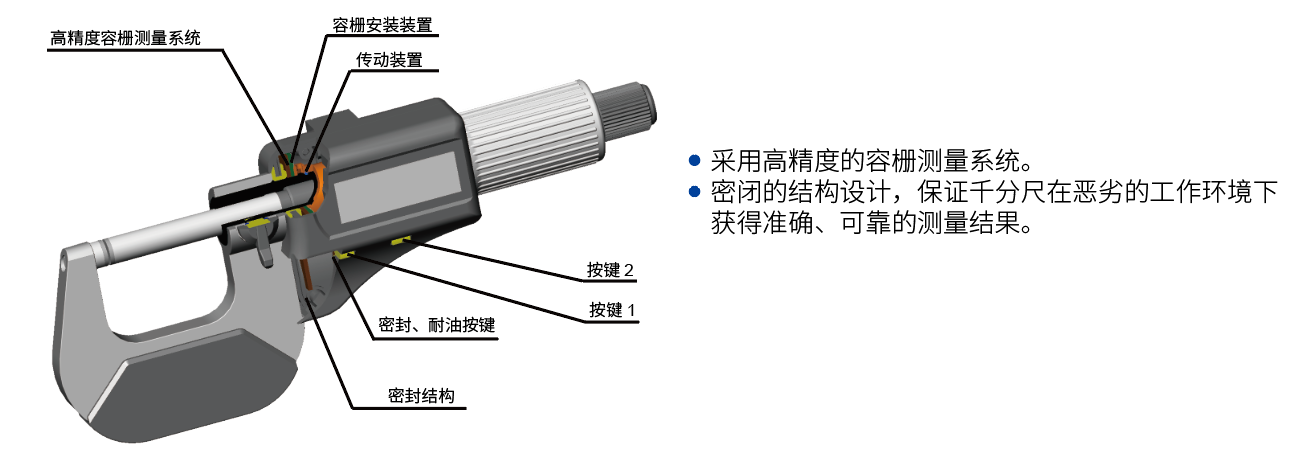

硬質合金測量面
棘輪套測力
| 貨號 | 測量范圍 | 精度 | 分辨力 |
|---|---|---|---|
| 132-01-554 | 0-25mm | ±0.002mm | 0.001mm |
| 132-02-554 | 25-50mm | ±0.002mm | 0.001mm |
| 132-03-554 | 50-75mm | ±0.003mm | 0.001mm |
| 132-04-554 | 75-100mm | ±0.003mm | 0.001mm |
| 132-05-554 | 100-125mm | ±0.003mm | 0.001mm |
| 132-06-554 | 125-150mm | ±0.003mm | 0.001mm |
| 132-07-554 | 150-175mm | ±0.004mm | 0.001mm |
| 132-08-554 | 175-200mm | ±0.004mm | 0.001mm |

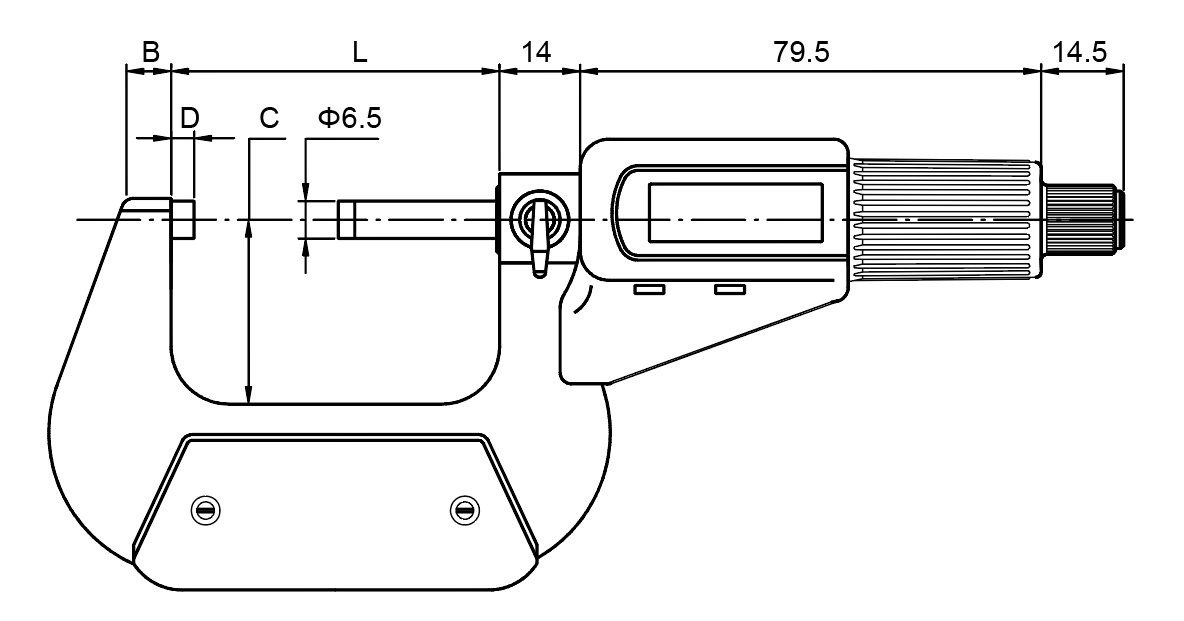

| 測量范圍 | C | L | B | D |
|---|---|---|---|---|
| 0-25mm | 24mm | 32mm | 6mm | 3.0mm |
| 25-50mm | 32mm | 57mm | 8mm | 3.0mm |
| 50-75mm | 45mm | 82mm | 8mm | 3.0mm |
| 75-100mm | 57mm | 107mm | 8mm | 3.0mm |
| 100-125mm | 70mm | 133mm | 10mm | 3.0mm |
| 125-150mm | 82mm | 158mm | 10mm | 3.0mm |
| 150-175mm | 95mm | 183mm | 12mm | 5.5mm |
| 175-200mm | 107mm | 209mm | 12mm | 5.5mm |
| 開/關鍵，自動斷電 | √ |
| 絕對/相對測量模式轉換 | √ |
| 公制/英制測量模式轉換 | √ |
| 初始值設置 | √ |
| 一粒CR2032電池 | √ |
| IP54防護等級 | √ |
| RS232C數據輸出，可以配P1505, 或選配數據無線傳輸裝置P1805 | √ |
